  1. Theia3D Documentation
  2. Getting Started

Startup Window

PreviousLicense ActivationNextTheia3D Basics

Last updated 16 days ago

Was this helpful?

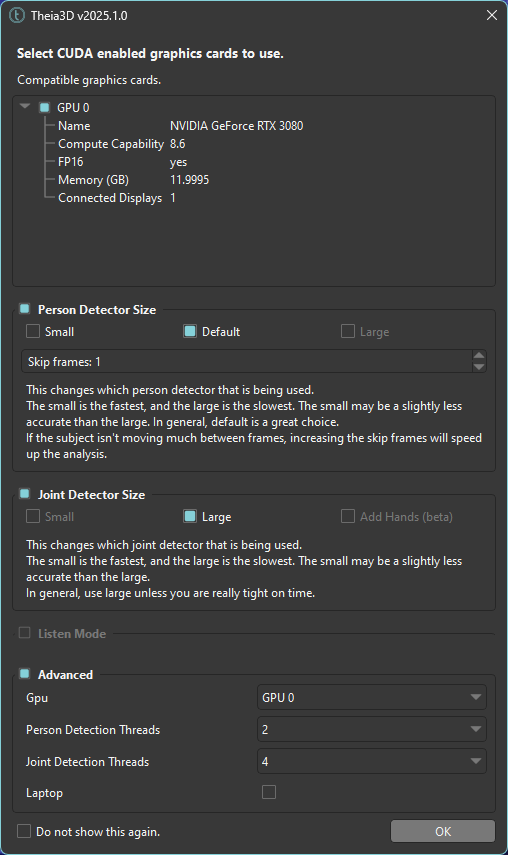

Theia3D application startup window.

The startup window appears if Select GPUs on launch is enabled in the Theia3D .

GPU Selection‍

Select which graphics card(s) to use when running Theia3D.

Person Detector Size

Select which person detector to use when running Theia3D, and set the Skip frames count.

  • Small: fastest, may be slightly less accurate than Default or Large.

  • Default: recommended.

  • Large: slowest, may be slightly more accurate than Default or Small (currently disabled).

Skip frames sets the frame interval used during the analysis process to identify and track people. Default is 1, Maximum is 5. Increasing the Skip Frames value will speed up the analysis. The Skip frames value should not be used for fast movements recorded at relatively low frame rates, or movements with multiple closely-interacting individuals, as the person identification may be affected.

Joint Detector Size

Select which joint detector to use when running Theia3D.

  • Small: fastest, may be slightly less accurate than Large (currently disabled).

  • Large: (default) slowest, may be slightly more accurate than Small.

  • Add Hands: (available as a license add-on by special request) Include hand model, which improves hand tracking through localization. Requires camera views that are positioned specifically to capture the hands and upper body. Please reach out to support@theiamarkerless.com for more information.

Listen Mode

Available as a license add-on by special request.

Listen Mode allows a directory to be selected where data is saved during data collection. The selected directory will be actively monitored for new, unprocessed data which will be automatically analyzed as it is detected. This allows data to be processed during an active data collection session, enabling all processing to be completed by the end of the collection session.

setup preferences
