  1. Troubleshooting
  2. Error Messages
  3. Calibration Errors

Field of view coverage insufficient (<60%)

PreviousToo few chessboards detected (<25)NextMovement Trial Processing Errors

Last updated 2 months ago

Was this helpful?

Explanation

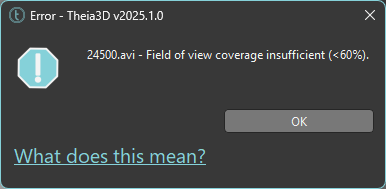

This error message arises when processing a lens calibration trial, and the detected chessboard patterns fail to coverage a sufficient proportion of the camera view. Theia requires the chessboard pattern detections cover at least 60% of the camera view in order to produce lens calibration parameters for that view. Review the section for more detail.

While the minimum coverage required is 60%, we recommend aiming for as high coverage values as possible, with >90% coverage being our recommended minimum.

Possible Solutions

Check that the correct lens calibration trial videos were loaded. If an trial is loaded and processed using the Lens Calibration tool, this error can occur.

Check that the chessboard pattern is sufficiently visible throughout the recording. If the videos are too dark or too bright, try using the to improve the visibility of the chessboard pattern. If the chessboard is too close to the camera during the trial such that pattern is too large and is never fully visible, a new lens calibration trial will need to be recorded.

extrinsic chessboard calibration
Enhance Videos
Lens Calibration Metrics
